Reel EFX Products

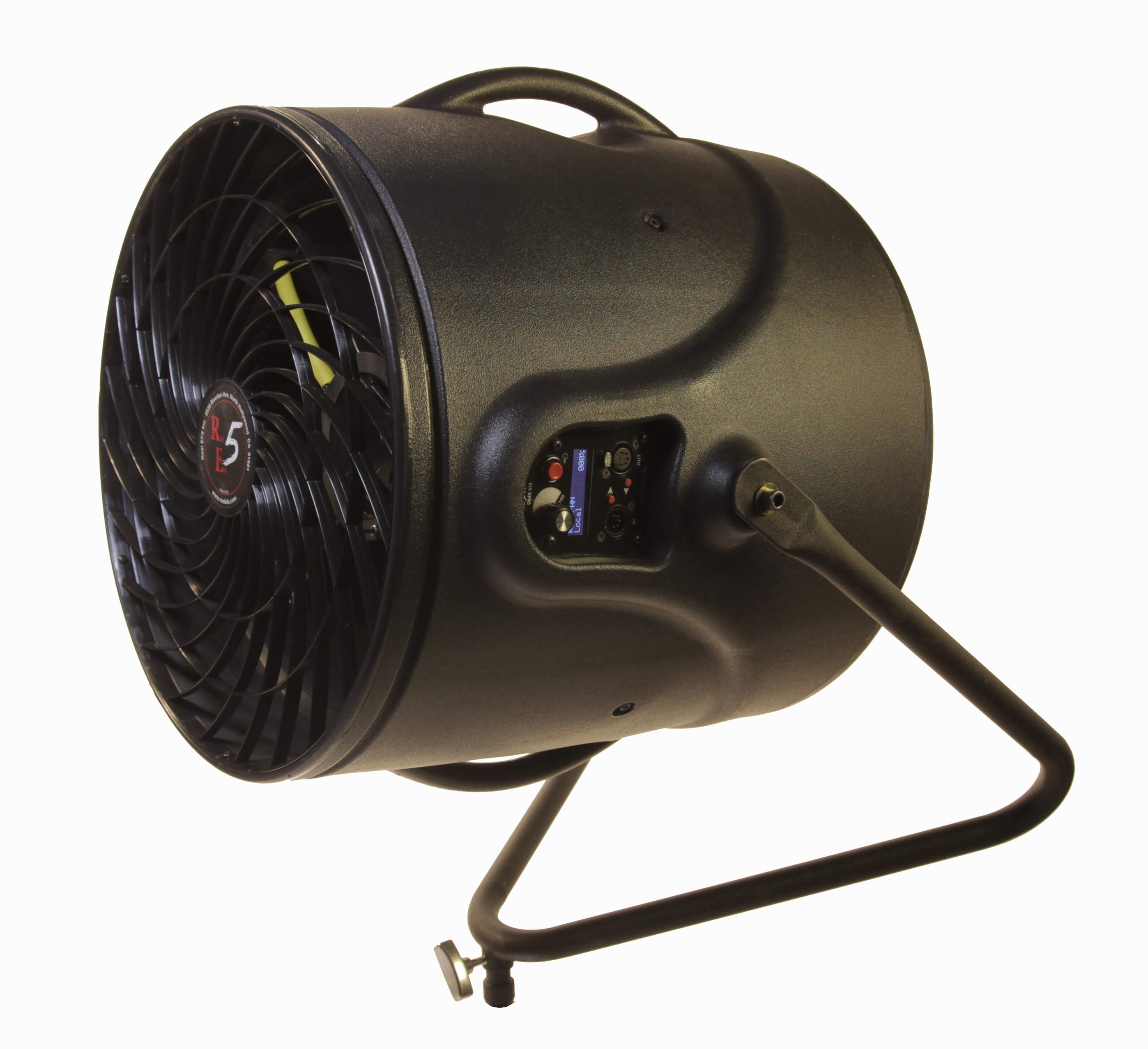

RE 5 Fan


Features
- 3 HP+
- Universal Voltage input 100-240 VAC
- Active power factor correction (1.0 pf @max load)
- Silent smart-switching eliminates drive noise at low rpm

Performance improvements:
- Faster-responding control system
- 33% more power than it's predecessor “The RE4”
- Improved active braking, stops blades to zero speed
- Eco-friendly RoHs-compliant construction

Specifications:
- Input ratings:
   Voltage: 100-240Vac
   Current: 21-11.6A
   Phase: Single
   Max power: 2800 Watts
   Frequency: 50/60Hz
- Motor: Baldor® Premium Efficient 3-Phase
- Full speed (200-240-Vac) : 2100 rpm, 39 mph @ 1 yard
- Full speed (115-125-Vac): 1780 rpm, 35 mph @ 1 yard
- Speed Control: Solid-state variable-frequency drive with active
   smart-switching & active power-factor correction
- DMX Control: USITT-compliant DMX 512 w/5-pin XLR
- Mounting: Steel floor stand with spud mount
- Blades: 9 blades, 16" diameter
- Dimensions: Body Size 20" x 24", Rotomolded High-Impact Plastic
- Weight: 56 lbs, (25.4 Kg)
- Grill: Front & Rear flow-enhancing, impact-resistant nylon grills
- Factory equipped with a Hubbell 20 amp 250 vac plug "HBL5466C" Nema 6-20P.
   (See optional plug adapter below)
- Warranty: One year parts & labor


List Price: $4,395.00


New, only available at Reel EFX: RE5 Plug Adapter




Related Files

Click here to download RE5 CFM Test 100-125 Vac

Click here to download RE5 CFM Test 200-240 Vac

Click here to download RE5 Full Power Wind Speed Pattern Test 100-125 Vac

Click here to download RE5 Full Power Wind Speed Pattern Test 200-240 Vac

Click here to download RE5 Info Sheet

Click here to download RE5 Stand Set Up Instructions

Click here to download RE5 Owner's Manual
